Manufacturer:Triconex
Model Number:3704E
Type:TMR, AI
Number of Input Points:64, commoned
Input Update Rate:75 ms
Resolution:12 bits
Accuracy:< 0.25% of FSR from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min
Power-Off Resistance:30 kΩ (DC), typical
Common Mode Rejection:N/A
Common Mode Range:N/A
Leg-to-Leg Isolation:200 kΩ, typical
Normal Mode Rejection:-1 dB @ 8Hz, -12 dB @ 60Hz, -18 dB @ 120Hz
Input Overrange:N/A

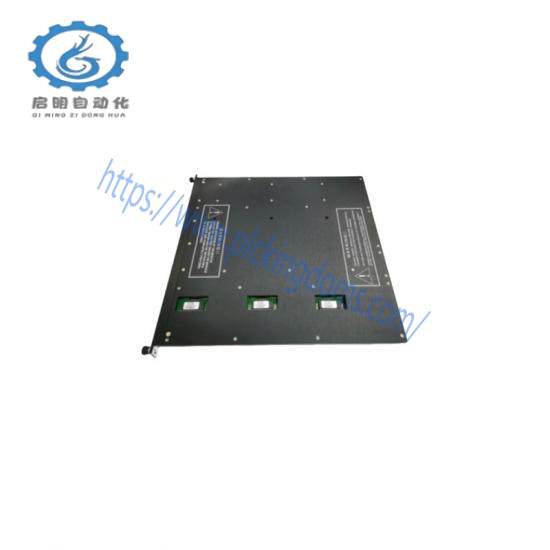

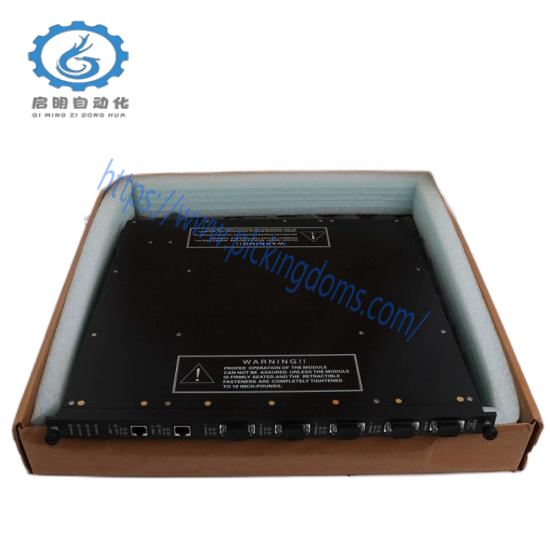

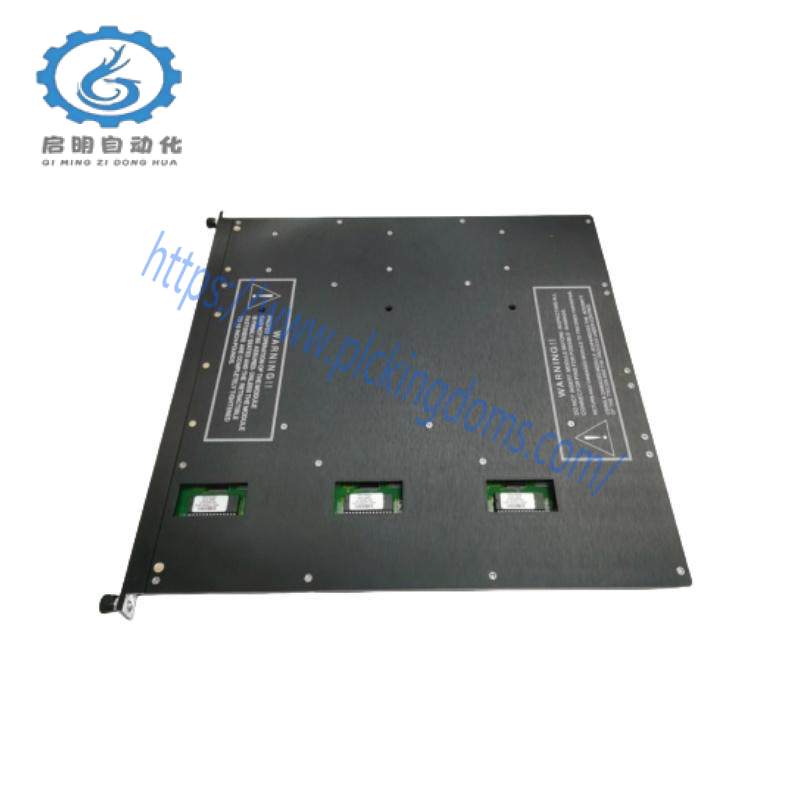

This Triconex 3704E Analog Input module is designed for high-precision industrial automation systems. With its robust design, it can handle up to 64 input points, providing excellent performance in various industrial environments.
Featuring a wide input voltage range of 0-5V or 0-10V ± 6%, this module ensures accurate measurements under different conditions. The high resolution of 12 bits and accuracy of less than 0.25% FSR from 0° to 60°C make it suitable for precise control and monitoring applications.
The module offers exceptional isolation capabilities, with leg-to-leg isolation rated at 200 kΩ, typical, ensuring reliable signal transmission without interference.
Its high common mode rejection ratio allows stable operation in noisy environments, while the power-off resistance of 30 kΩ (DC), typical, ensures safe and stable performance even when the system is off.
Designed for durability and reliability, the Triconex 3704E is a must-have component for any industrial automation system requiring high-precision analog inputs.
