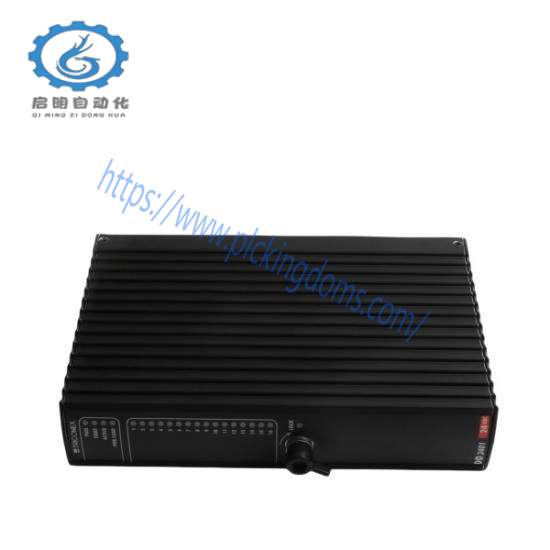

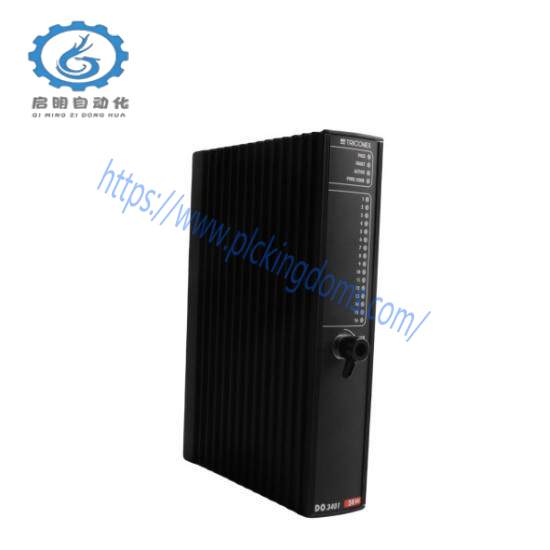

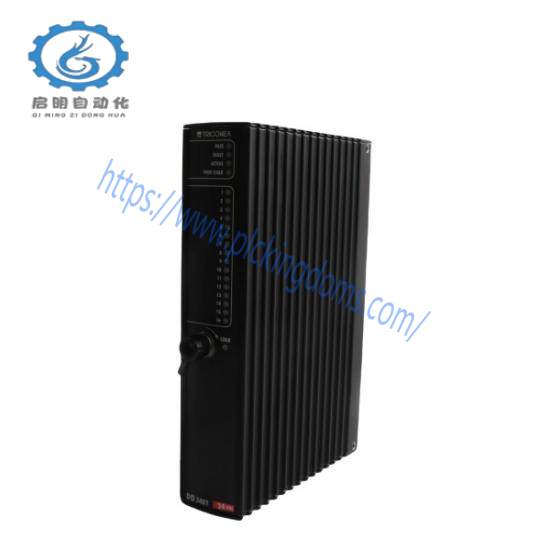

Triconex 3401 Digital Output Module: Precision Control in Industrial Automation

Model Type:Digital Output Module

Manufacturer:Triconex

Model Number:3401

Points Supported:16

Commoning Capability:Yes

Nominal Output Voltage:24 VDC

Specified Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Switching Current (Self-Limiting):<4.8 A

Typical Switching Current:3.0 A

Degraded Mode Current (Self-Limiting):> 0.7 A

Typical Degraded Mode Current:1.5 A

Field Alarms:Loss of field power, output point shorted

On/Off Loop-back Thresholds:0–5 VDC = Off region, 6–14 VDC = transition region, 15–30 VDC = On region

Leakage to Load (Off):Minimized

Environmental Conditions:Operates within wide temperature range

    Engineered with robust materials for durability and reliability, the Triconex 3401 Digital Output Module is built to withstand harsh industrial environments.

    Featuring advanced self-limiting technology, this module ensures safe and stable operation even under varying loads and voltage fluctuations.

    Each channel is equipped with field alarms, providing real-time feedback on power loss and short circuits, crucial for maintenance and system optimization.

    Supporting TriStation/TPS communication protocol, it seamlessly integrates with existing systems, enhancing efficiency and reducing setup time.

    With an operating temperature range from -40°C to +70°C and a storage capacity from -40°C to +85°C, this module can operate in extreme conditions without compromising performance.

    The compact size and lightweight design facilitate easy installation and maintenance, making it a practical choice for both new and retrofit applications.
