Operating Temperature Range:-40°C to 70°C (-40°F to 158°F)
Relative Humidity:5% to 95% non-condensing
Input Voltage:120-240V AC, 1-Phase
Nominal Current:18A RMS
Bus Capacitance:1880 μF
Bus Overvoltage Protection:400V DC
Energy Absorption Capability:51 Joules
Output Power:2kW
Output Current:Continuous 10A, Peak 30A
Maximum Power Dissipation:50W
PID Controller Update Rate:250 μs
Feedback Type:Optically Isolated Digital Inputs and Outputs
Auxiliary Supply Voltage:5V DC

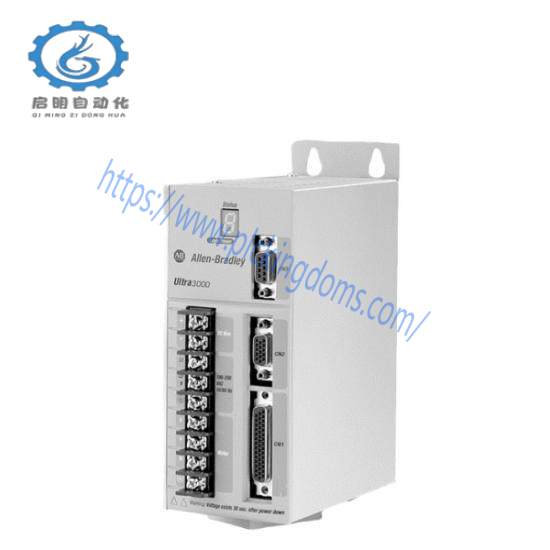

The Allen-Bradley 2098-DSD-020X boasts an ultra-compact design weighing just 2.1 kg (4.6 lbs) with dimensions of 98.1mm x 32.77mm x 65.02mm, making it an ideal choice for space-constrained environments.
Equipped with an advanced Proportional+Integral+Derivative (PID) velocity regulator with a 250 μs update rate, this servo drive ensures smooth and accurate motion control, even in demanding applications.
Featuring 8 optically isolated digital inputs and 4 N.O. relay outputs rated for 30V DC max voltage and 1A max current, the 2098-DSD-020X provides versatile connectivity options for various control scenarios.
The 2098-DSD-020X supports feedback position data from a variety of encoders including Allen-Bradley sine/cosine and incremental models, ensuring precise positioning control.
With its robust construction and comprehensive feature set, the Allen-Bradley 2098-DSD-020X is engineered to deliver unparalleled reliability and performance, making it a preferred choice for manufacturers seeking to optimize their production lines.
