Model Type:Communication Bridge
Manufacturer:Allen Bradley
Model Number:1756-CNB/A
Module Category:ControlLogix
Communication Protocol:ControlNet
Data Rate:Up to 10 MBPS
Temperature Range:-40°C to +70°C
Operating Voltage:12 to 24 VDC
Power Consumption:Less than 1 W
Enclosure Type:IP20
Connection Type:ControlNet Compatible
Isolation Rating:3000 VDC
Redundancy:Single or Dual
Number of Channels:1 or 2
Input/Output Configuration:Flexible for Analog and Digital signals

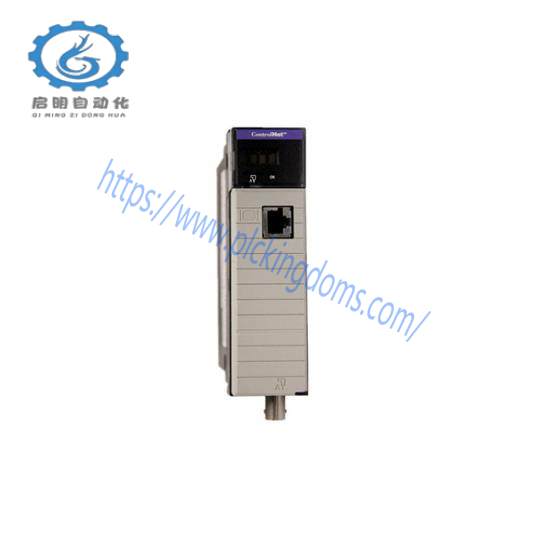

The Allen Bradley 1756-CNB/A ControlLogix Communication Module is engineered to provide unparalleled reliability and efficiency in industrial automation networks. This module seamlessly integrates into the ControlLogix system, facilitating robust data communication between controllers and external devices.
With its open-type enclosure, the module is designed for easy installation and maintenance in various industrial settings. Its advanced insulation ensures protection against electrical interference, safeguarding critical data integrity during transmission.
Featuring a temperature rating of 0 – 60 DEG C and high humidity resistance, this module operates reliably in challenging industrial environments. Its compatibility with shielded or unshielded twisted pair cables ensures flexibility in cable selection, minimizing signal loss and interference.
The Allen Bradley 1756-CNB/A is equipped with a power dissipation rating of 5.1 W, providing efficient energy management without compromising performance. Its compatibility with 802.3 compliant cables ensures seamless integration with a wide range of network infrastructures.
Engineered with a focus on safety and reliability, this communication module withstands vibrations up to 2 G and shock levels of 30 G, making it suitable for harsh industrial conditions. Its absence of a USB port ensures secure and dedicated communication channels, optimizing data flow within the industrial automation network.
