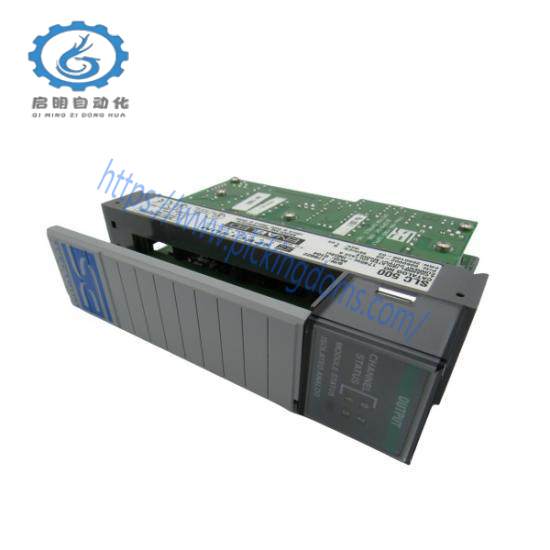

Allen Bradley 1746SC-INO4VI Volt Output SLC 500 Input Module

In stock

The AB 1746SC-INO4VI Analog Input Module is designed to convert electrical signals from thermocouples, voltage sources, and other sensors into digital signals for control systems, enhancing process monitoring and automation.

Model Type:SLC 500

Model Number:1746SC-INO4VI

Manufacturer:Allen Bradley

Number of Channels:4 (Input), 4 (Output)

Input Type:Common Mode Voltage Range -20 To 20 V, Absolute Input Voltage +7.5 VDC / +7.5 VAC RMS (Max)

Output Range:-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Current:-30 To 30 MA (Max)

Output Current:-10 To 10 V – 1 LSB

Absolute Input Current:-30 To 30 MA (Max)

Absolute Output Current:-10 To 10 V – 1 LSB

Backplane Current Draw:55 MA

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Temperature Rating:0 – 60 DEG C

Experience unparalleled precision in signal acquisition with our Allen Bradley 1746SC-INO4VI Analog Input Module. Designed with industrial-grade components, this module excels in measuring critical analog signals, ensuring reliable performance under demanding conditions.

Each of the two input channels is equipped with high-resolution sensors capable of detecting both voltage and current changes within their specified ranges. This versatility makes it suitable for a wide array of applications, from monitoring process variables in manufacturing plants to collecting environmental data in remote locations.

The module boasts robust overvoltage protection, safeguarding against electrical spikes and surges that could damage sensitive electronics. Its ability to withstand a broad range of voltages and currents ensures compatibility with various equipment and systems.

Ease of integration is a key feature, thanks to its built-in communication options compatible with Ethernet/IP, DH+, DH-485, and RS-232 protocols. This enables seamless connectivity with Allen Bradley‘s ControlLogix system or any other compatible network infrastructure, facilitating efficient data exchange and control across the factory floor.

With its open type enclosure and chassis mounting option, the Allen Bradley 1746SC-INO4VI offers flexibility in installation. It is rated for operation in temperatures ranging from 0°C to 60°C, making it suitable for use in both industrial and harsh environments. The module adheres to strict environmental standards, ensuring it can operate reliably in varying humidity conditions without degrading performance.

1746SC-INO4VI Volt Output SLC 500
