Model Type:SLC500
Number of Channels:4
Input Type:High Resolution
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)
Input Range:-20 To 20 MA
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range for DC voltage:-10 To 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

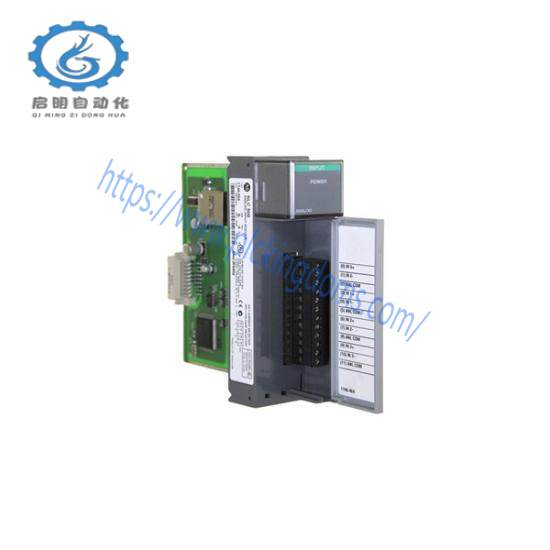

Engineered for durability and precision, the Allen Bradley 1746-NI4/A Analog Input Module offers unparalleled reliability in harsh industrial environments.
With a common mode voltage range of -20 to 20 V and an absolute input voltage tolerance of plus or minus 7.5 VDC or 7.5 VAC RMS, it ensures accurate signal measurement across a wide range of applications.
Featuring 4 high-resolution channels, this module is ideal for complex control systems requiring simultaneous data acquisition from multiple sensors.
Backplane current draw is optimized for efficient power management, allowing for seamless integration with various industrial systems without overloading.
The open-type enclosure design facilitates easy installation and maintenance, making it suitable for a broad spectrum of industrial settings.
