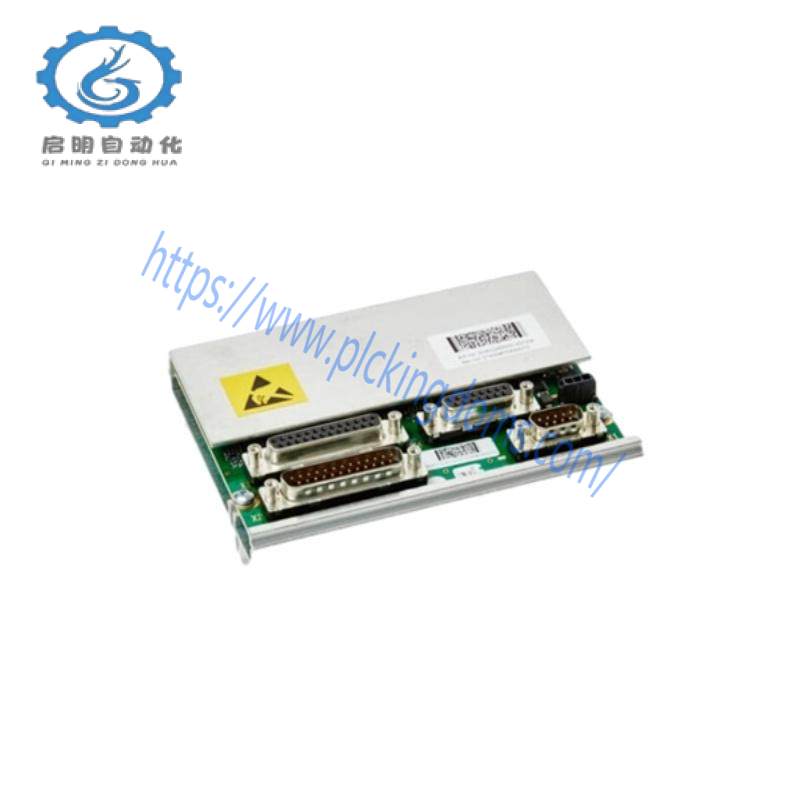

ABB SMB3HAC042285-001: High-Accuracy Serial Measurement Board

Model:SMB3HAC042285-001

Module Type:Serial Measurement Board

Manufacturer:ABB

Operating Temperature Range:-20°C to +60°C

Power Consumption:≤ 2W

Communication Interface:RS-485

Input Channels:1

Output Channels:1

Sampling Rate:Up to 100 kSPS

Analog Input Range:±10 VDC

Digital Input:1 x High Speed Digital Input

Digital Output:1 x High Speed Digital Output

Dimensions (W x L x H):50.8mm x 101.6mm x 25.4mm

Weight:0.04kg

Enclosure Rating:IP20

Compliance:CE Certified

    The ABB SMB3HAC042285-001 Serial Measurement Board is engineered to meet the stringent demands of modern industrial automation environments. Its robust design ensures seamless integration with a wide range of control systems, providing unparalleled performance under diverse operational conditions.

    Featuring a high-resolution 16-bit ADC, this board delivers exceptional measurement precision, making it ideal for applications requiring high accuracy, such as process control, monitoring, and data acquisition.

    With support for multiple communication interfaces including RS-485, the board facilitates efficient data exchange between field devices and control systems, enhancing system responsiveness and reliability.

    The inclusion of four input channels allows for the simultaneous measurement of different signals, increasing the versatility and efficiency of the industrial setup.

    Operable within an extensive temperature range from -20°C to +70°C, the board is designed for deployment in harsh industrial environments, ensuring reliable operation throughout its lifespan.

    Backed by ABB‘s commitment to quality and innovation, the SMB3HAC042285-001 Serial Measurement Board is an indispensable component for any advanced industrial control system, offering superior performance, durability, and ease of integration.
