Operating Voltage:Up to 690VAC
Current Rating:Up to 500A
Protection Types:Overload, Short Circuit, Phase Loss
Relay Output:Contact Ratings 1NO+1NC or 2NO+2NC
Relay Life Expectancy:Over 10 million operations
Protection Levels:Compliance with international standards
Mounting Configuration:Panel or DIN Rail

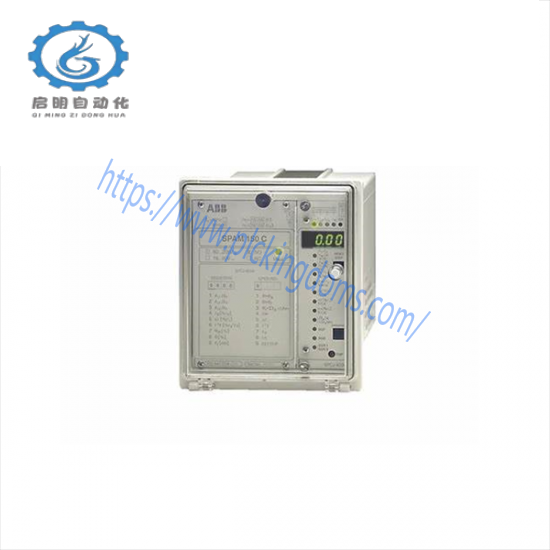

The ABB PAM-150C-AA Motor Protection Relay boasts an advanced microprocessor-based design that ensures accurate and responsive protection for motors. Its compact size makes it highly adaptable for use in various industrial applications, requiring minimal installation space.
Featuring a wide operating range from 0.1A to 150A, this relay is capable of protecting motors across different power ratings. It utilizes current sensing technology to detect and respond to abnormal currents indicative of overloads or short circuits, preventing potential damage to the motor.
With a rating voltage of 380VAC and an operating temperature range from -20°C to +50°C, the ABB PAM-150C-AA is suitable for a broad spectrum of industrial environments. Its IP20 enclosure rating provides basic protection against dust and splashes, ensuring durability in harsh conditions.
The relay’s contact configuration offers flexibility in system integration, supporting three-pole changeover (3PDT) and four normally open (NO) plus two normally closed (NC) contacts. This allows for versatile control and monitoring capabilities, enhancing system reliability and operational efficiency.
The ABB PAM-150C-AA is designed with user-friendly installation and maintenance in mind. Its intuitive interface facilitates quick setup and easy diagnostics, minimizing downtime and simplifying the overall management of motor protection within industrial systems.
