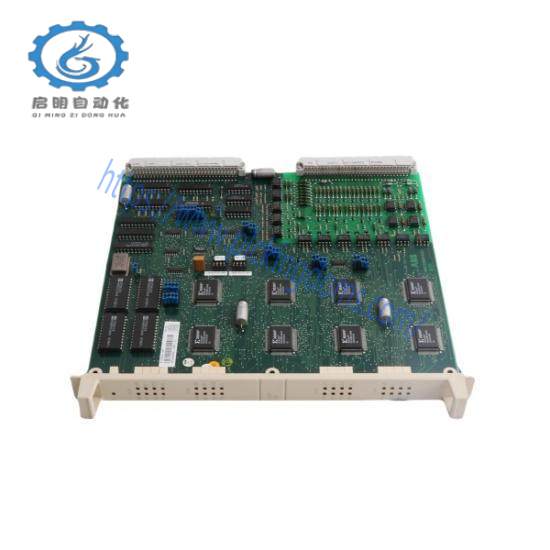

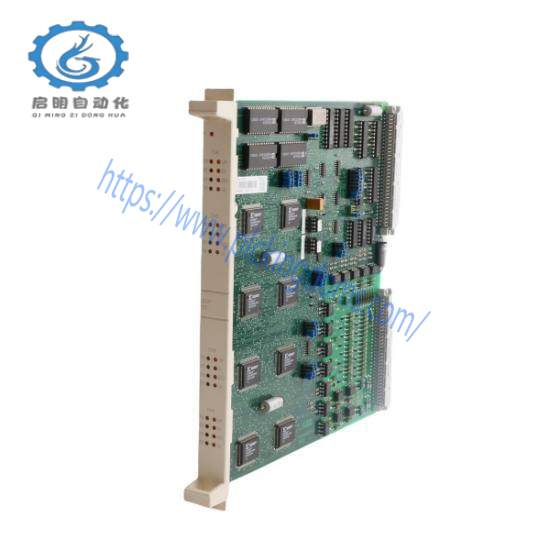

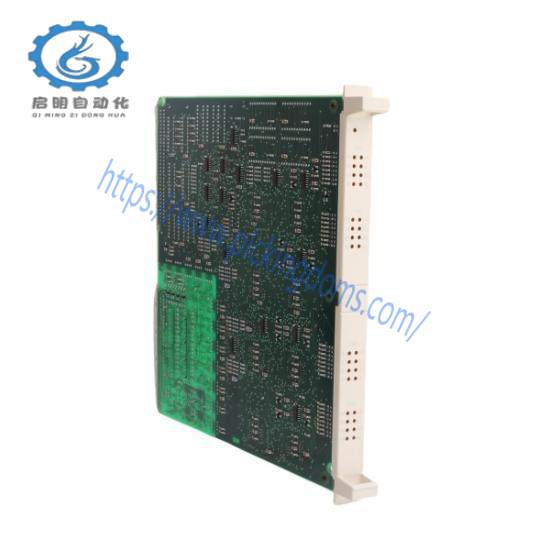

ABB DSDP170 57160001-ADF Pulse Counting Module

Brand:ABB

Model:DSDP170

Sub-Type:57160001-ADF

Function:Pulse Counting & Analysis

Input Type:Digital

Output Type:Analog

Operating Range:1 kHz to 1 MHz

Resolution:1 µs

Accuracy:+/- 0.01%

Power Supply Voltage:DC 12 V to 24 V

Current Consumption:Max. 15 mA

Environmental Temperature:-20°C to +55°C

Humidity:5% to 95% RH non-condensing

Dimensions (WxHxD):100mm x 100mm x 25mm

Weight:0.2kg

    Integrating cutting-edge technology, the ABB DSDP170 57160001-ADF Pulse Counting Module ensures unparalleled precision in pulse counting applications, making it indispensable in various industrial automation setups.

    With its wide operating range from 5 Hz to 20 kHz, this module is versatile enough to cater to diverse machinery requirements, enhancing operational efficiency and reliability.

    Featuring a resolution of 1 μs, the ABB module offers unparalleled accuracy, essential for applications requiring high precision measurements, ensuring minimal errors in data collection.

    Operable within a temperature range of -25°C to +60°C and with a humidity tolerance of 5% to 95% non-condensing, this module demonstrates exceptional durability and reliability across varied environmental conditions.

    Equipped with a 24 VDC input voltage and a 24 VDC output voltage, along with a power consumption of just 1 W, the ABB DSDP170 57160001-ADF Pulse Counting Module optimizes energy usage, contributing to sustainable and efficient operation.

    Designed with an IP20 rated connector, this module ensures protection against dust and limited water splashes, maintaining operational integrity even in challenging environments.
