Brand:GE
Model:IC3600VANB1D
Series:Phoenix Controls
Application:Steam & Gas Turbine Control Systems
Power Rating:Up to 400 MW
Dimensions:W x H x D (inches): 7 x 10 x 3
Weight:Approximately 15 lbs
Input Voltage:AC 120V / DC 24V
Operating Temperature:-40°C to +60°C
Humidity Range:0% to 95% non-condensing
The GE IC3600VANB1D is a sophisticated control module that enhances the operational efficiency of industrial automation systems. Designed for compatibility with the first two Speedtronic series (Mark I and Mark II) by General Electric, this module is renowned for its scalability, durability, and adaptability.

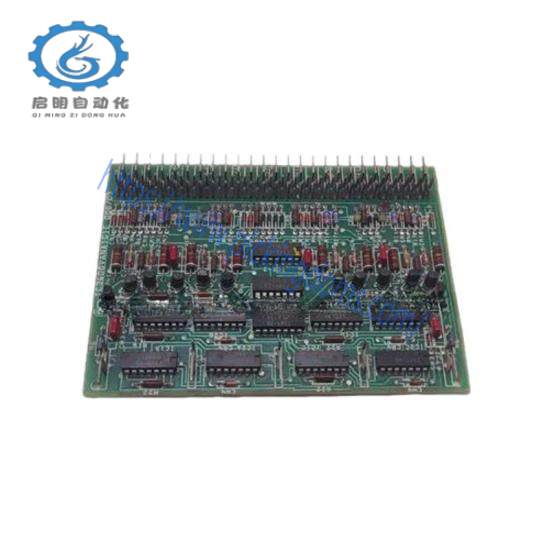

Equipped with a robust combination of semiconductor devices including transistors, diodes, and resistors, this module ensures stable performance under varying operational conditions. Its vertical mounting of components optimizes space and facilitates easier maintenance.
This control module features two aluminum electrolytic capacitors and a ceramic capacitor, ensuring reliable power regulation and enhanced system stability. The board is marked with critical codes like ADS, A, SBH, 68A844515, 002/02, and 006/04, facilitating quick identification and troubleshooting.
The IC3600VANB1D is meticulously designed to manage heavy-duty turbine systems ranging from small single-turbine unmanned stations to complete power plants with capacities up to 400 MW. Its compatibility with the Mark I and Mark II systems, although no longer supported by GE, underscores its legacy and versatility in industrial automation.
Crafted with precision and quality, this control module bears the iconic GE ‘USA’ round logo, reflecting the brand’s commitment to excellence. It undergoes rigorous testing and quality assurance processes to meet international standards, ensuring reliability and safety.
Upon purchase, the IC3600VANB1D is expertly packaged with a static-reducing sleeve to protect it during transit. Installation instructions and safety guidelines are available in retained manuals or online data sheets for easy access and reference.
