Model Type:Redundant Communication Module
Number Of Channels:2
Current Rating:Drawn: 970 mA @ 5.1 VDC, 1.7 mA @ 24 VDC
Isolation:30 V (Continuous)
Basic Insulation Type:
ControlNet Connections:A/B to Backplane, A to ControlNet B
No Isolation Between NAP Or USB And Backplane:
Enclosure:Open Type
RFI Suppression:Radiated: 10 V/M @ 80-2000 MHz, 10 V/M @ 900 MHz, 3 V/M @ 2000-2700 MHz
Temperature Range:0-60°C
Humidity Range:5-95% non-condensing
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet
USB Port:Not applicable

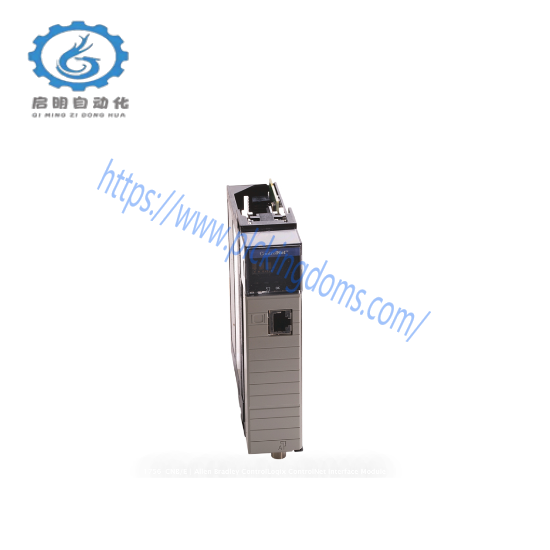

The Allen-Bradley 1756-CNBD ControlNet Bridge Module is designed to seamlessly integrate ControlLogix systems with ControlNet networks, ensuring enhanced data transfer speeds and reliability.
With its robust design, this module supports both drawn and 24 VDC current ratings, providing versatility in industrial applications.
Equipped with advanced RF suppression technology, the module ensures minimal interference, guaranteeing stable communication in harsh environments.
Operable within a wide temperature range of 0 to 60 degrees Celsius, this module is suitable for a variety of industrial settings, from cold warehouses to hot manufacturing floors.
Built with an open-type enclosure, it allows for easy installation and maintenance, making it a preferred choice for industrial automation projects requiring high efficiency and reliability.
