Input Type:Discrete
Number of Inputs:16
Communication Cable:16-Point
Voltage Category:24V DC
Operating Voltage Range:20.4…26.4V DC
Current per Point:0.5A @ 60°C, 1.0A @ 30°C
Power:24 Volts DC
Bus Current Draw, Max:200mA
Mounting:DIN Rail or Panel Mount
Resolution:320 MICRO-V/Count
Rejection Ratio:Normal Mode Noise > 80 DB, Common Mode Noise > 100 DB
Slot Width:1

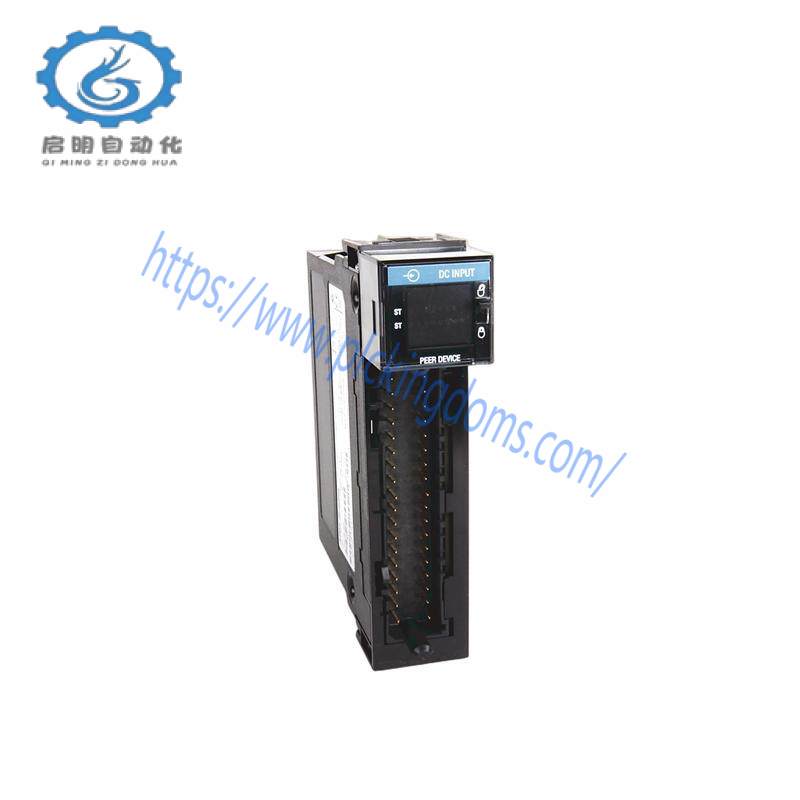

The Allen Bradley 1756-IB16IF Input Module is an essential component for ControlLogix automation systems, engineered for reliable and efficient signal processing. This module is specifically designed to handle a variety of industrial signals with precision, ensuring accurate data acquisition.
Featuring 16 digital inputs, this module supports a wide voltage range of 10-31VDC, making it compatible with a broad spectrum of industrial applications. Its power consumption of 3.9W ensures minimal energy usage while maintaining robust performance.
With a resolution of 320 MICRO-V/Count at +10.25V, the module offers unparalleled accuracy in signal detection, enabling precise control and monitoring in critical industrial processes. The rejection ratio of normal and common mode noise exceeds 80DB and 100DB respectively, ensuring minimal interference and superior signal integrity.
The 1756-IB16IF module’s slot width of 1 facilitates easy integration into ControlLogix chassis, promoting a streamlined installation process. This feature not only simplifies the setup but also enhances system reliability by minimizing the risk of errors during assembly.
Manufactured with high-quality materials and subjected to rigorous testing, the Allen Bradley 1756-IB16IF Input Module ensures durability and longevity, providing peace of mind for users in demanding industrial environments. Its compatibility with ControlLogix systems ensures seamless integration, making it a preferred choice for engineers and technicians seeking efficient and reliable data acquisition solutions.
